DB2 SSL

DB2 Native Encryption protects your DB2 database against threat at rest but this does not secure your data at transit. Even though your database is encrypt but malicious user can tap communication between your database and clients to view and modify data in transit. To secure your database at transit you can configure SSL communication between your application and database server, so that all communication goes through secure tunnel. DB2 support TLS version 1.0, 1.1 and 1.2. TLS 1.2 is not enabled by default. You can configure DB2 to support only TLS 1.2 or all of them i.e. TLS 1.2, 1.1 and 1.0. In this blog we will go through steps to configure DB2 SSL on DB2 server as well as on DB2 client. If you are interested to know about DB2 Native Encryption feature check blog DB2 Native Encryption, check blog Encrypt DB2 Database for steps to configure DB2 Native Encryption.


Configure DB2 SSL


Step1: Prerequisite

For SSL to work, digital certificate is require. You would need a digital certificate signed by certificate authority (CA) or you can self signed your digital certificate. If your database and clients are in private network then self signed digital certificate should be fine.

Steps to configure SSL using self signed digital certificate and digital certificated signed by CA is same.

Step 2: Include gskit in LD_LIBRARY_PATH, LIBPATH, SHLIB_PATH environment variable.

Update LD_LIBRARY_PATHLIBPATHSHLIB_PATH to include both 32 and 64 bit gskit path. Update DB2 instance user profile file to include below

PATH=$HOME/sqllib/gskit/bin:$PATH
export PATH
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$HOME/sqllib/lib64/gskit
export LD_LIBRARY_PATH
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$HOME/sqllib/lib32/gskit
export LD_LIBRARY_PATH
LIBPATH=$LIBPATH:$HOME/sqllib/lib64/gskit
export LIBPATH
LIBPATH=$LIBPATH:$HOME/sqllib/lib32/gskit
export LIBPATH
SHLIB_PATH=$SHLIB_PATH:$HOME/sqllib/lib64/gskit
export SHLIB_PATH
SHLIB_PATH=$SHLIB_PATH:$HOME/sqllib/lib32/gskit
export SHLIB_PATH


DB2 profile file

















Step3: Create KeyStore and self signed digital certificate, extract certificate from Keystore

Create a local Keystore of type PKCS12 using below gsk8capicmd_64 command using stash option.

gsk8capicmd_64 -keydb -create -db "DB2TEST1_DB2I3_ssl.ps12"  -pw "P@ssw0rd_Db@i#" -type pkcs12 -stash

DB2 Local Keystore











gsk8capicmd_64 will not give any output on completion, it will create 2 files in your current working directory. It is necessary to create Keystore with stash option otherwise for every Keystore access you need to provide Keystore password.

You should ensure that your Keystore and stash file is secure, to do this change your Keystore directory access to 700.

chmod 700 /home/db2i3/.KeyStore

Secure KeyStore






Create a self signed digital certificate using below gsk8capicmd_64 command

gsk8capicmd_64 -cert -create -db "DB2TEST1_DB2I3_ssl.ps12"     -pw "P@ssw0rd_Db@i#" -label "DB2TEST1_DB2I3_ssl"  -dn "CN=db2test1"

Create self signed digital certificate




gsk8capicmd_64 w
ill not give any output on completion. -db option local KeyStore name, -pw indicates password of local KeyStore, -label indicates label for certificate which will be used in latter steps, -db indicates  X.500 distinguished name that uniquely identifies the certificate. In -dn option apart from CN there are other options like O, OU, L, ST, C, DC, EMAIL as well but those are not mandatory.

In case of digital certificate signed by CA, you need to import it in your local database using below command

gsk8capicmd_64 -cert -import -db "SSL_CERTIFICATE.crt" -pw "P@ssw0rd" -target "DB2TEST1_DB2I3_ssl.ps12" -target_stashed

-db indicates certificate name, -pw indicates password associated with certificate, -target indicates local Keystore, -target_stashed indicates stash file is available to authenticate access to local KeyStore.

Verify Certificate in KeyStore using below gsk8capicmd_64 command

gsk8capicmd_64 -cert -list -db "DB2TEST1_DB2I3_ssl.ps12" -stashed

List certificate in Local KeyStore








Extract certificate from Local KeyStore using below gsk8capicmd_64 command for distribution to client system.

gsk8capicmd_64 -cert -extract -db "DB2TEST1_DB2I3_ssl.ps12" -stashed -label "DB2TEST1_DB2I3_ssl" -target "dbserver_ssl.crt"

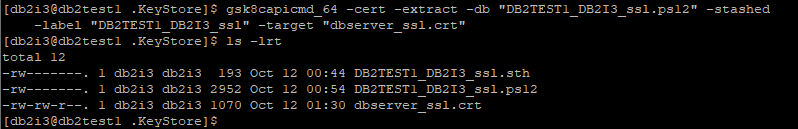

Extract certificate from Local KeyStore









On completion it will generated a file specified with -target option, -db indicates local KeyStore name, -stashed indicates stash file is available to authenticate access to local KeyStore, -label indicates label to certificate to be extracted, -pw indicates password associated with certificate.

Step4: Update Database Manager (DBM) parameters and registry variable.

Update DBM parameters

db2 update dbm cfg using SSL_SVR_KEYDB $HOME/.KeyStore/DB2TEST1_DB2I3_ssl.ps12
db2 update dbm cfg using SSL_SVR_STASH $HOME/.KeyStore/DB2TEST1_DB2I3_ssl.sth
db2 update dbm cfg using SSL_VERSIONS TLSV12
db2 update dbm cfg using SSL_SVCENAME 50003
db2 update dbm cfg using SSL_SVR_LABEL DB2TEST1_DB2I3_ssl

Update DBM SSL parameters

SSL_SVR_KEYDB specify fully qualified path of local KeyStore
SSL_SVR_STASH specify fully qualified path of local KeyStore stash file
SSL_VERSIONS specify TLS version to be supported. TLSV12 indicates only TLS 1.2 will be supported. You can keep it null or TLSV1 to support only TLS 1.0 and 1.1. You can update it to TLSV1,TLSV12 to support TLS 1.0,1.1 and 1.2.
SSL_SVCENAME specify port on which DB2 will accept TLS connections.
SSL_SVR_LABEL specify label of certificate in local KeyStore which will be used for SSL connection

Update Registry Variable

db2set DB2COMM=SSL

Set DB2COMM=SSL







DB2COMM specify protocol used for communication with remote clients. SSL indicates DB2 will only support  SSL protocol for remote client communication. You can also set it to SSL,TCPIP to support both SSL,TCPIP protocol for remote client communication.

Step5: Restart DB2 Instance.

Stop DB2 Instance using db2stop command

db2stop





Start DB2 Instance using db2start command

db2start






Step6: Configure DB2 Client to use SSL for communication

Copy certificate file dbserver_ssl.crt generated in step3 to Client system.

DB2 CLP, IBM Data Server client or IBM Data Server Run Time client

Configure user profile to include both 32 and 64 bit gskit path in LD_LIBRARY_PATHLIBPATHSHLIB_PATH, follow Step 2. If gskit in unavailable install gskit first.

Create a local Keystore of type PKCS12 using below gsk8capicmd_64 command using stash option.

gsk8capicmd_64 -keydb -create -db "db2appl.ps12"  -pw "P@ssw0rd" -type pkcs12 -stash

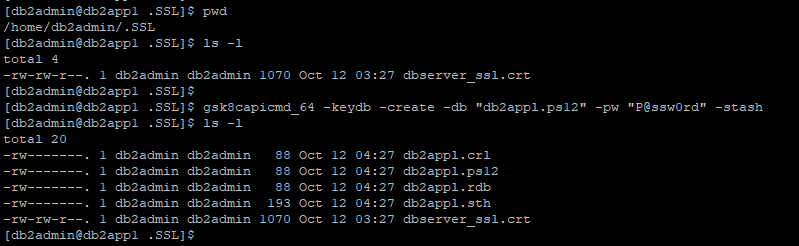

Create Local KeyStore
















Add certificate extracted from DB Server KeyStore to Client system KeyStore. Before adding certificate to client system KeyStore ensure you have copied Server certificate from DB server.

gsk8capicmd_64 -cert -add -db db2appl.ps12" -pw "P@ssw0rd" -label "DB2TEST1_DB2I3_ssl" -file "dbserver_ssl.crt"

Add Server Certificate to Local KeyStore





Update client DBM parameters

db2 update dbm cfg using SSL_CLNT_KEYDB $HOME/.SSL/db2appl.ps12
db2 update dbm cfg using SSL_CLNT_STASH $HOME/.SSL/db2appl.sth

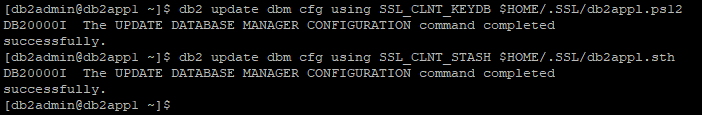

Update DBM SSL parameters










Catalog Remote Database on Client system

db2 catalog TCPIP NODE DB2TEST1  REMOTE  192.168.0.201  SERVER 50003  SECURITY SSL
db2 catalog DATABASE TESTDB AS TESTDB AT NODE DB2TEST1  AUTHENTICATION SERVER

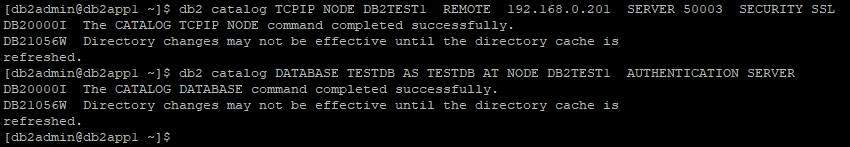

Catalog Remote database



Test DB2 Connection

Test DB2 Connection with SSL configuration












Verify Connection is SSL connection

Identify client connection application id on DB server using db2 list application command.

db2 list application












In above application id 192.168.0.203.57680.201012001420, 57680 is client port number, after performing grep for 57680 on netstat -a, local address port is 50003 which is SSL port, hence confirmed connection from client 192.168.0.203 is using SSL for connecting to TESTDB database.


DB2 ODBC/CLI Driver Connection String

Driver Version 10.5 FP 5 or above

Ensure DB Server certificate file dbserver_ssl.crt is present on client system.

"Database=TESTDB; Protocol=tcpip; Hostname= db2test1; Servicename=50003; Security=ssl; SSLServerCertificate=dbserver_ssl.crt"

Driver Version prior to 10.5 FP 5

Ensure local KeyStore got created and DB Server certificate dbserver_ssl.crt was added to local KeyStore.

"Database=TESTDB; Protocol=tcpip; Hostname= db2test1; Servicename=50003; Security=ssl; SSLClientKeystoredb=db2app1.ps12; SSLClientKeystash=db2app1.sth"


Db2 .Net Data Provider Connection String

Client Version 10.5 FP 5 or above:

Ensure DB Server certificate file dbserver_ssl.crt is present on client system.

String connectString = "Server=db2test1:50003;Database=TESTDB;Security=ssl; SSLServerCertificate=dbserver_ssl.crt";

Client Version prior to 10.5 FP 5:

Ensure local KeyStore got created and DB Server certificate dbserver_ssl.crt was added to local KeyStore.

String connectString = "Server=db2test1:50003;Database=TESTDB;Security=ssl; SLClientKeystoredb = db2app1.ps12; SSLClientKeystash=db2app1.sth";


Java Connection String

Create Java  KeyStore and import server certificate file generated in Step 3.

keytool -import -trustcacerts -alias DB2SSL -file dbserver_ssl.crt -keystore db2.jks -storepass xyzz

java.util.Properties properties = new java.util.Properties();
properties.put("user", "xxxx");
properties.put("password", "yyyy");
properties.put("sslConnection", "true");
properties.put("sslTrustStoreLocation","db2.jks");
properties.put("sslTrustStorePassword","xyzz");
java.sql.Connection con = java.sql.DriverManager.getConnection(url, properties);

or

jdbc:db2://db2test1:50003/TESTDB:sslConnection=true;sslTrustStoreLocation=db2.jks;sslTrustStorePassword=xyzz;
